Κωδικός προϊόντος: 6757762
Chamfer mill with double negative geometry which utilises 1 of SDEW 0903.. or SDEX 0903.. single-sided insert, cutting diameter 10 to maximum 22mm with 45° approach angle and 16mm Weldon shank according to DIN 1835B, 75mm overall length for chamfering with a maximum depth of cut of 8.0mm..
Κωδικός προϊόντος: 6757771
Chamfer mill with double negative geometry which utilises 2 of SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter 16 to maximum 28mm with 45° approach angle and 16mm parallel shank according to DIN 1835A, 200mm overall length for chamfering with a maximum depth of cut of 8.0mm..
Κωδικός προϊόντος: 6757763
Chamfer mill with double negative geometry which utilises 2 of SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter 16 to maximum 28mm with 45° approach angle and 16mm Weldon shank according to DIN 1835B, 75mm overall length for chamfering with a maximum depth of cut of 8.0mm..

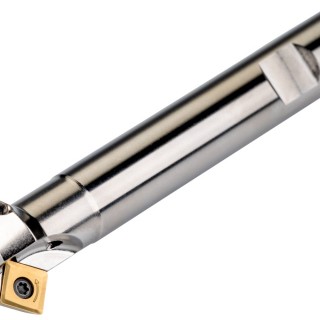

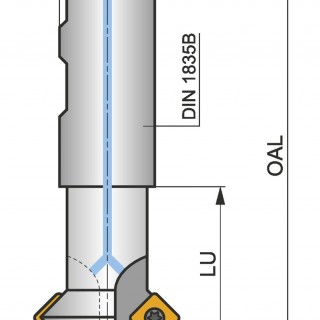

Κωδικός προϊόντος: 6758333
Chamfer mill with double negative geometry which utilises 2 of SOMT 09T3.. single-sided inserts, cutting diameter 16 to maximum 28.8mm with 45° approach angle and 16mm Weldon shank according to DIN 1835B, 110mm overall length, through coolant for chamfering with a maximum depth of cut of 4.5mm..

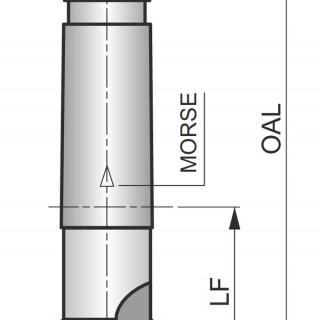

Κωδικός προϊόντος: 6757798
Chamfer mill with double negative geometry which utilises 2 of SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter 16 to maximum 28mm with 45° approach angle and MT 2 morse taper shank according to DIN 228-1A, 94mm overall length for chamfering with a maximum depth of cut of 8.0mm..
Κωδικός προϊόντος: 8057898
..
Κωδικός προϊόντος: 6758330

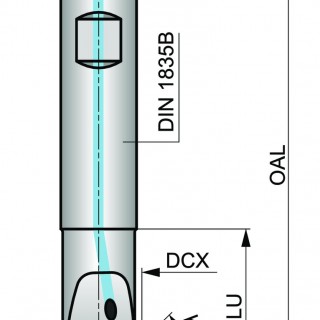

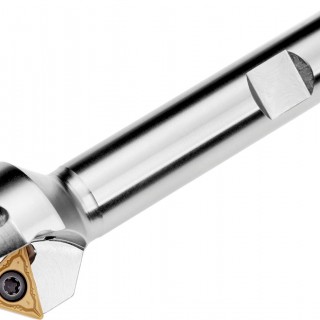

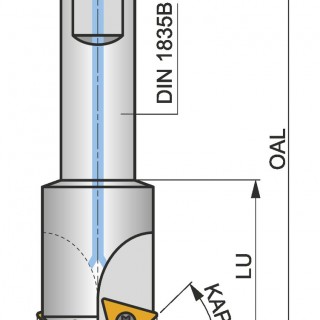

Chamfer mill which utilises 2 of TCMT 16T308E-FM:T83.. single-sided inserts, cutting diameter 11 to maximum 21mm with 45° approach angle and 16mm Weldon shank according to DIN 1835B, 30mm functional and 100mm overall length, through coolant for chamfering with a maximum depth of cut of 8.5mm..
Κωδικός προϊόντος: 6758331
Chamfer mill which utilises 2 of TCMT 16T308E-FM:T83.. single-sided inserts, cutting diameter 19 to maximum 39mm with 45° approach angle and 20mm Weldon shank according to DIN 1835B, 30mm functional and 100mm overall length, through coolant for chamfering with a maximum depth of cut of 8.5mm..
Κωδικός προϊόντος: 6757772
Chamfer mill with double negative geometry which utilises 3 of SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter 25 to maximum 37mm with 45° approach angle and 25mm parallel shank according to DIN 1835A, 200mm overall length for chamfering with a maximum depth of cut of 8.0mm..
Κωδικός προϊόντος: 6757764
Chamfer mill with double negative geometry which utilises 3 of SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter 25 to maximum 37mm with 45° approach angle and 25mm Weldon shank according to DIN 1835B, 98mm overall length for chamfering with a maximum depth of cut of 8.0mm..
Κωδικός προϊόντος: 6758334
Chamfer mill with double negative geometry which utilises 3 of SOMT 09T3.. single-sided inserts, cutting diameter 25 to maximum 37.8mm with 45° approach angle and 25mm Weldon shank according to DIN 1835B, 125mm overall length, through coolant for chamfering with a maximum depth of cut of 4.5mm..
Κωδικός προϊόντος: 6757829
Chamfer mill with double negative geometry which utilises 3 of SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter 25 to maximum 37mm with 45° approach angle and MT 3 morse taper shank according to DIN 228-1A, 124mm overall length for chamfering with a maximum depth of cut of 8.0mm..
