Κωδικός προϊόντος: 6758317

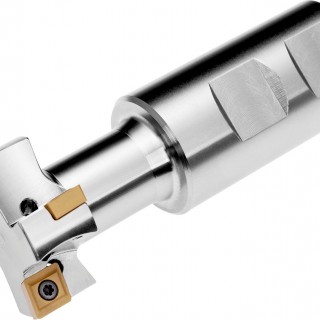

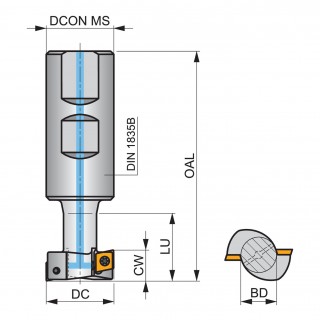

T-slot mill which utilises 2 of CCMX 060304 single-sided inserts, cutting diameter 25mm with 90° approach angle and 25mm Weldon shank according to DIN 1835B, 86mm overall length, through coolant for T-Slot milling and rear face milling with a maximum depth of cut of 11mm..
Κωδικός προϊόντος: 6758318
T-slot mill which utilises 2 of CCMX 08T308 single-sided inserts, cutting diameter 32mm with 90° approach angle and 32mm Weldon shank according to DIN 1835B, 98mm overall length, through coolant for T-Slot milling and rear face milling with a maximum depth of cut of 14mm..
Κωδικός προϊόντος: 6758319
T-slot mill which utilises 4 of CCMX 09T308 single-sided inserts, cutting diameter 40mm with 90° approach angle and 32mm Weldon shank according to DIN 1835B, 105mm overall length, through coolant for T-Slot milling and rear face milling with a maximum depth of cut of 18mm..
Εμφάνιση 1 έως 3 από 3 (1 Σελ.)
