Κωδικός προϊόντος: 5985711
Long series end mill with 4 flutes, diameter 10mm with 45mm length of cut, 95mm overall length and 54.5mm reach with neck relief, according to DIN 844 L standard with a 10mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 45° helix and 12° rake angle for shoulder milling and slot mill..
Κωδικός προϊόντος: 5985715
Long series end mill with 4 flutes, diameter 12mm with 53mm length of cut, 110mm overall length and 64.5mm reach with neck relief, according to DIN 844 L standard with a 12mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 45° helix and 12° rake angle for shoulder milling and slot mil..
Κωδικός προϊόντος: 5985719
Long series end mill with 4 flutes, diameter 14mm with 53mm length of cut, 110mm overall length and 64.5mm reach with neck relief, according to DIN 844 L standard with a 12mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 45° helix and 12° rake angle for shoulder milling and slot mil..
Κωδικός προϊόντος: 5985723
Long series end mill with 4 flutes, diameter 16mm with 63mm length of cut, 123mm overall length and 74.5mm reach with neck relief, according to DIN 844 L standard with a 16mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 45° helix and 12° rake angle for shoulder milling and slot mil..
Κωδικός προϊόντος: 5985736
Long series end mill with 4 flutes, diameter 20mm with 75mm length of cut, 141mm overall length and 90.5mm reach with neck relief, according to DIN 844 L standard with a 20mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 45° helix and 12° rake angle for shoulder milling and slot mil..

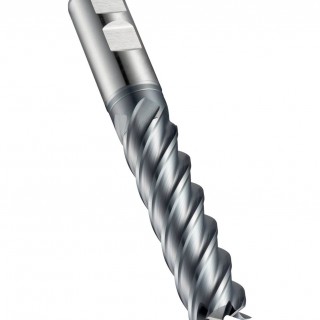

Κωδικός προϊόντος: 5985744
Long series end mill with 5 flutes, diameter 25mm with 90mm length of cut, 166mm overall length and 109.5mm reach with neck relief, according to DIN 844 L standard with a 25mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 45° helix and 12° rake angle for shoulder milling and slot mi..
Κωδικός προϊόντος: 5985748
Long series end mill with 3 flutes, diameter 6mm with 24mm length of cut and 68mm overall length, according to DIN 844 L standard with a 6mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 45° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and to..
Κωδικός προϊόντος: 5985751
Long series end mill with 4 flutes, diameter 8mm with 38mm length of cut and 88mm overall length, according to DIN 844 L standard with a 10mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 45° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and t..
Εμφάνιση 1 έως 8 από 8 (1 Σελ.)
