Κωδικός προϊόντος: 6000137
Extra long length drill with straight shank, diameter 0.2188" (7/32) with an overall length of 8" and flute length of 6" according to ANSI standard with 118° point angle, HSS with bright finish for 12xD drilling with pecking in steel, cast iron and non-ferrous material..
Κωδικός προϊόντος: 6000140
Extra long length drill with straight shank, diameter 0.2813" (9/32) with an overall length of 8" and flute length of 6" according to ANSI standard with 118° point angle, HSS with bright finish for 12xD drilling with pecking in steel, cast iron and non-ferrous material..

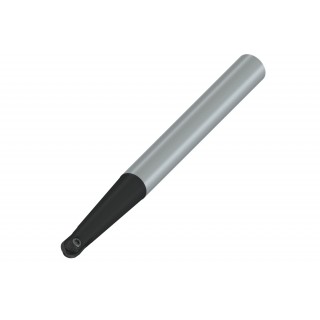

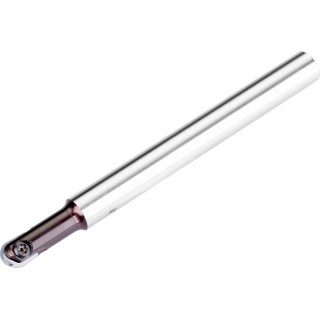

Κωδικός προϊόντος: 6756690
Copy end mill which utilises 1 of RC 08, RC 08-F, LC 08-KP or LC 08-KPF single-sided insert, cutting diameter 8mm with 10mm parallel shank according to DIN 1835A, 25mm functional and 110mm overall length for copy milling with a maximum depth of cut of 0.6-3.2mm..
Κωδικός προϊόντος: 6756718
Copy end mill which utilises 1 of RC 08, RC 08-F, LC 08-KP or LC 08-KPF single-sided insert, cutting diameter 8mm with 12mm parallel shank according to DIN 1835A, 13.5mm functional and 140mm overall length for copy milling with a maximum depth of cut of 0.6-3.2mm..
Κωδικός προϊόντος: 6757579
Copy end mill which utilises 1 of RC 08 or RC 08-F single-sided insert, cutting diameter 8mm with M6 threaded shank for standard modular tool-holders, 30mm protrusion length for copy milling with a maximum depth of cut of 0.6-3.2mm..
Κωδικός προϊόντος: 6761667
Face mill with double negative geometry which utilises 5 of PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 100 to maximum 115.8mm with 57° approach angle and 32mm connection bore according to DIN 8030-A, 50mm protrusion length for face milling with a maximum depth of cut of 10..
Κωδικός προϊόντος: 6760312
Shoulder mill with double negative geometry which utilises 5 of LNMU 1607.. or LNGU 1607.. double-sided inserts, cutting diameter 100mm with 90° approach angle and 32mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential pitch for shallow shoulder millin..

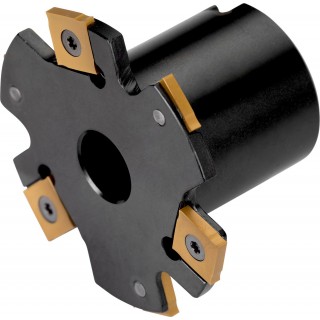

Κωδικός προϊόντος: 6758327
Disc mill with positve/negative geometry which utilises 10 of SNHQ 1203.. double-sided inserts, cutting diameter 100mm with 90° approach angle and 27mm connection bore according to DIN 8030-A, 50mm protrusion length for deep slot milling with a width of cut of 6mm..

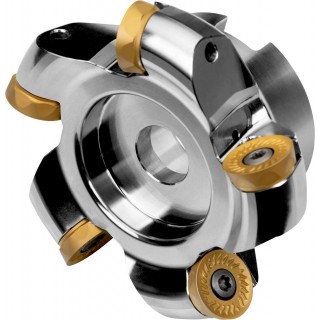

Κωδικός προϊόντος: 7155925
Copy face mill with double negative geometry which utilises 5 of RCMT 2006MO.. single-sided inserts, cutting diameter 100mm with 32mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milli..
Κωδικός προϊόντος: 6761262
High feed cutter with positve/negative geometry which utilises 6 of PD.X 0905ZE.., PDKT 0905.. or PDMW 0905.. single-sided inserts, cutting diameter 100mm with 19° approach angle and 32mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant for face milling with a maximum..
Κωδικός προϊόντος: 6761571
Face mill with double negative geometry which utilises 6 of HNGX 0906AN.. or XNGX 0906AN.. double-sided inserts, cutting diameter 100 to maximum 111.7mm with 45° approach angle and 32mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential pitch for face m..
Κωδικός προϊόντος: 6922504
Face mill with double positive geometry which utilises 6 of OEHT 0604AE.., REHT 1604M0.. or XEHT 0604AE.. single-sided inserts, cutting diameter 100 to maximum 110.2mm with 43° approach angle and 32mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential p..
