Κωδικός προϊόντος: 8023032
Double ended parting and grooving insert, 26 mm long with a 5mm cutting width and 2.5mm full radius, a cutting width tolerance of ±0.05. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron. MM geo..
Κωδικός προϊόντος: 8023033
Double ended parting and grooving insert, 26 mm long with a 5mm cutting width and 2.5mm full radius, a cutting width tolerance of ±0.05. Grade T7325 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges M10-M25 and K15-K25 for machining of stainless-steel and cast-iron. MM geometry..
Κωδικός προϊόντος: 8178805
GL5-S29CBS is blade for modular tool holder MS-EN, designed for GL inserts. Suited for grooving and parting-off applications. Blades treated for longer tool life...
Κωδικός προϊόντος: 7803253
Spring clamp parting and grooving tool blade for holding a 25mm double ended insert with 5mm cutting width (designation GL5-D… ), tool style assembly with 32-DU.. for a maximum grooving depth of 60mm, tool blade height 32mm and length 150mm for parting-off and tube parting-off..
Κωδικός προϊόντος: 7802947
Double ended parting and grooving insert, 25 mm long with a 6mm cutting width and 0.3mm corner radii, a cutting width tolerance of ±0.05. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and M20-M35 for machining of steel and stainless-steel. PM geometry with highly ..
Κωδικός προϊόντος: 7802948
Double ended parting and grooving insert, 25 mm long with a 6mm cutting width and 0.4mm corner radii, a cutting width tolerance of ±0.05. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron. PR geometry with negative T-la..
Κωδικός προϊόντος: 8023034
Double ended parting and grooving insert, 25 mm long with a 6mm cutting width and 0.8mm corner radii, a cutting width tolerance of ±0.05. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron. GM ve..
Κωδικός προϊόντος: 8023035
Double ended parting and grooving insert, 25 mm long with a 6mm cutting width and 0.8mm corner radii, a cutting width tolerance of ±0.05. Grade T7325 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges M10-M25 and K15-K25 for machining of stainless-steel and cast-iron. GM versati..
Κωδικός προϊόντος: 8023036
Double ended parting and grooving insert, 26 mm long with a 6mm cutting width and 3mm full radius, a cutting width tolerance of ±0.05. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron. MM geome..
Κωδικός προϊόντος: 8023037
Double ended parting and grooving insert, 26 mm long with a 6mm cutting width and 3mm full radius, a cutting width tolerance of ±0.05. Grade T7325 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges M10-M25 and K15-K25 for machining of stainless-steel and cast-iron. MM geometry, ..

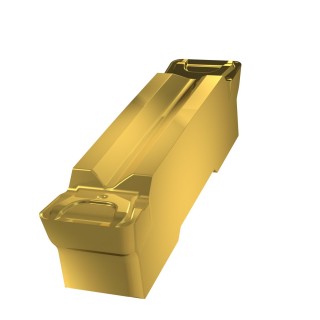

Κωδικός προϊόντος: 8463347
Double ended parting and grooving insert, 25 mm long with a 8mm cutting width and 0.8mm corner radii, a cutting width tolerance of ±0.05. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron. GM ve..
Κωδικός προϊόντος: 8178806
GL6-S29CBS is blade for modular tool holder MS-EN, designed for GL inserts. Suited for grooving and parting-off applications. Blades treated for longer tool life...
