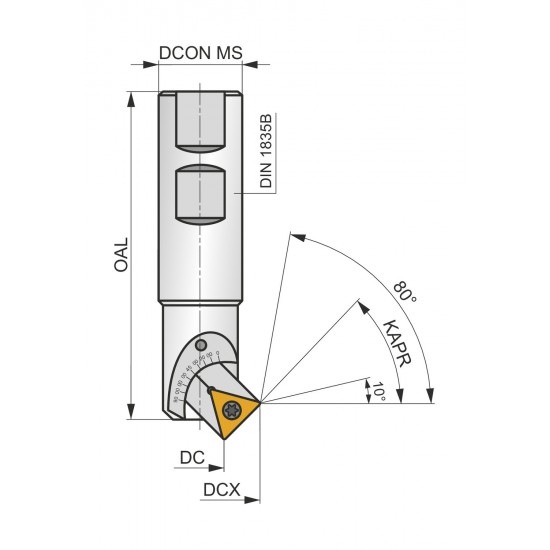

2636-05-25 End Milling Cutter - Chamfering

Chamfer mill with double negative geometry which utilises 1 of TCMT 16T304E-FM:T83.. or TCMT 16T308E-FM:T83.. single-sided insert, cutting diameter 5 to maximum 31mm with 10 -80° approach angle and 25mm Weldon shank according to DIN 1835B, 100mm overall length for chamfering with a maximum depth of cut of 8.5mm
