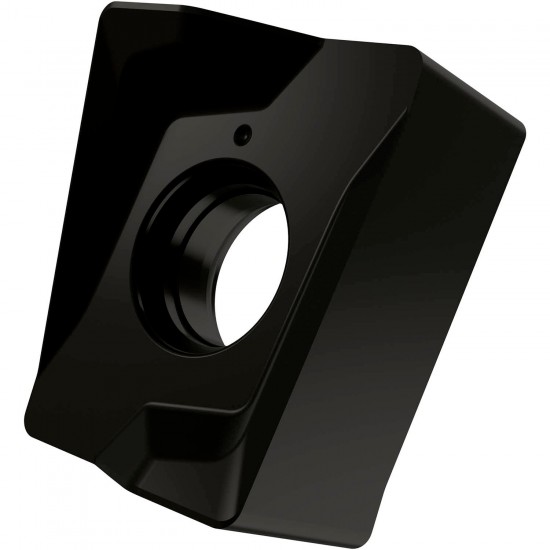

LNGU 160708SR-M:M9315 Milling Insert - Square Shoulder

Double-sided milling insert LNGU 1607 with chip-breakers, rectangular for a maximum depth of cut of 13.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M9315 MT-CVD coated WC-Co carbide within ISO-grade ranges P05 -P25 and K10 -K30 for machining of steel and cast-iron with shoulder mills SLN16
