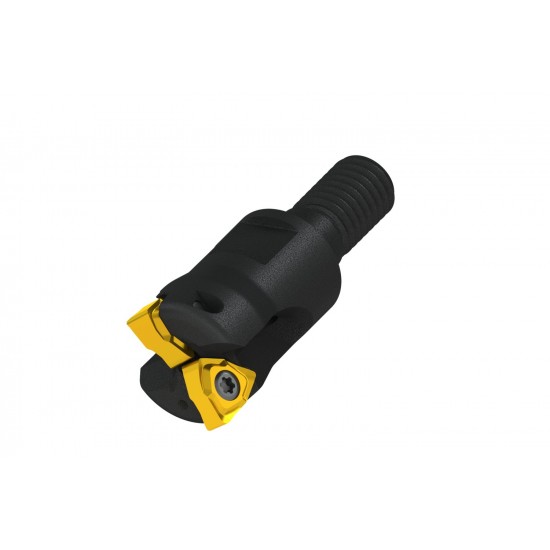

16A2R025M08-SWN04C-C Modular Head for Copy and Profile Milling

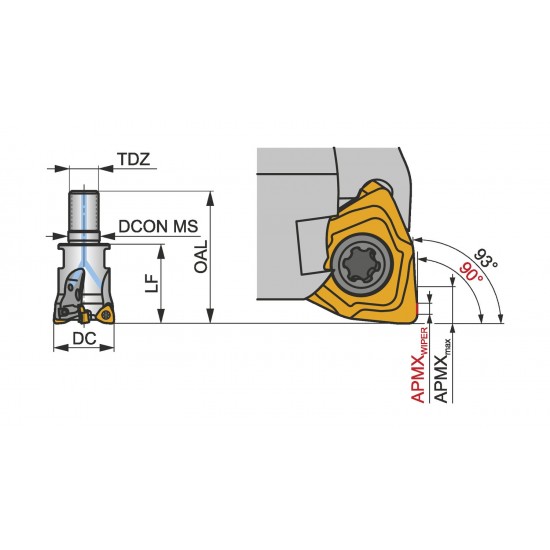

Copy face mill with double negative geometry which utilises 2 of WNHX0403.. double-sided inserts, cutting diameter 16mm with 90° approach angle and M08 threaded shank for standard modular tool-holders, 25mm functional and, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling, copy milling and ramping with a maximum depth of cut of 0,5 (2,0)mm
