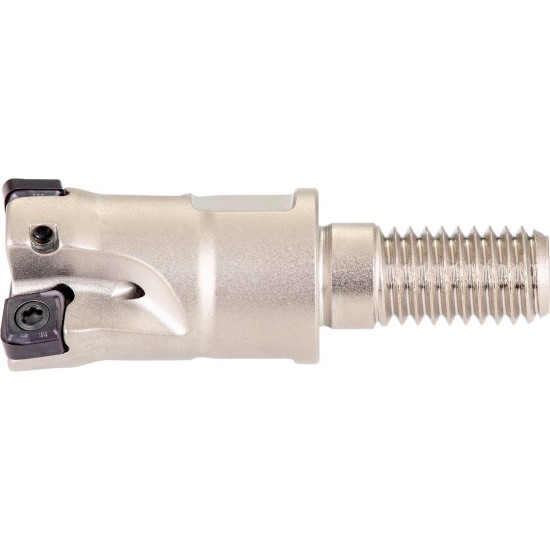

16A3R025M08-SCN05C-C Modular Head for Copy and Profile Milling

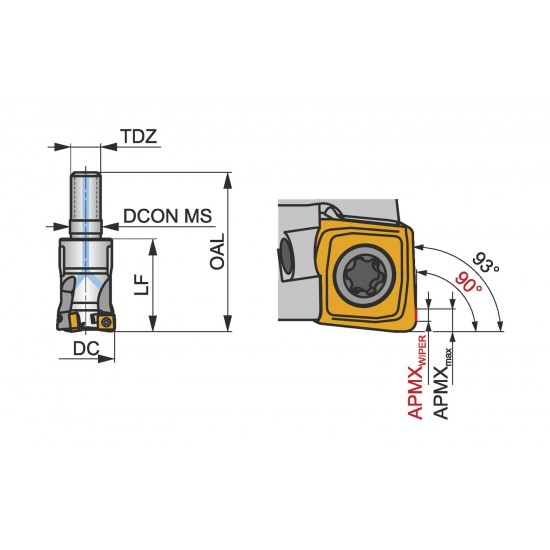

Copy face mill with double negative geometry which utilises 3 of CNHX 0502.. double-sided inserts, cutting diameter 16mm with 93° approach angle and M8 threaded shank for standard modular tool-holders, 25mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5mm
