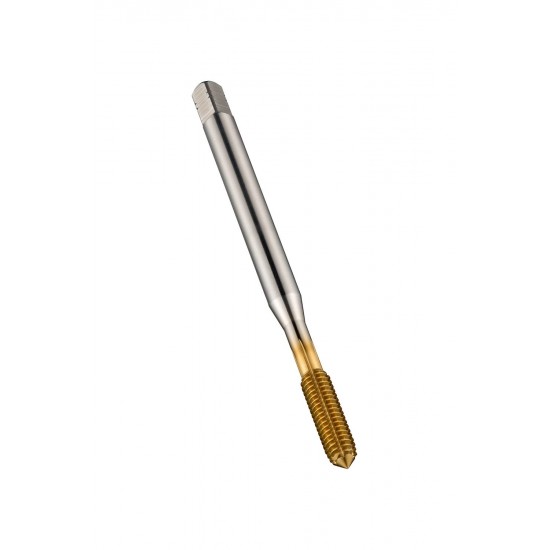

E294M10 M Machine Forming Tap, Oil Grooves

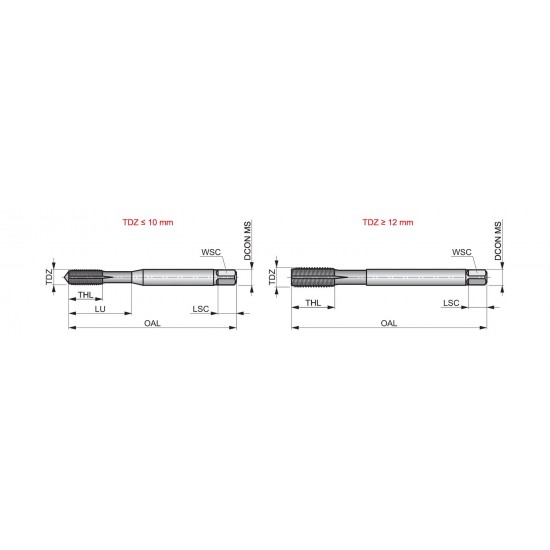

Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6HX class of fit, dimensions according to DIN 2174 standard with 10.0mm shank and 8.0mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium
